SL-6000-H made in JAPAN

  • SL-6000-H-BL_1_products.png
  • SL-6000-H-R_1_products.png
  • SL-6000-H-B_1_products.png
  • SL-6000-H-G_1_products.png
  • SL-6000-H-GY_1_products.png
  • SL-6000-H-BR_1_products.png
  • SL-6000-H-W_1_products.png
  • SL-6000-H-Y_1_products.png
  • SL-6000-H-BL_1_products.png
  • SL-6000-H-R_1_products.png
  • SL-6000-H-B_1_products.png
  • SL-6000-H-G_1_products.png
  • SL-6000-H-GY_1_products.png

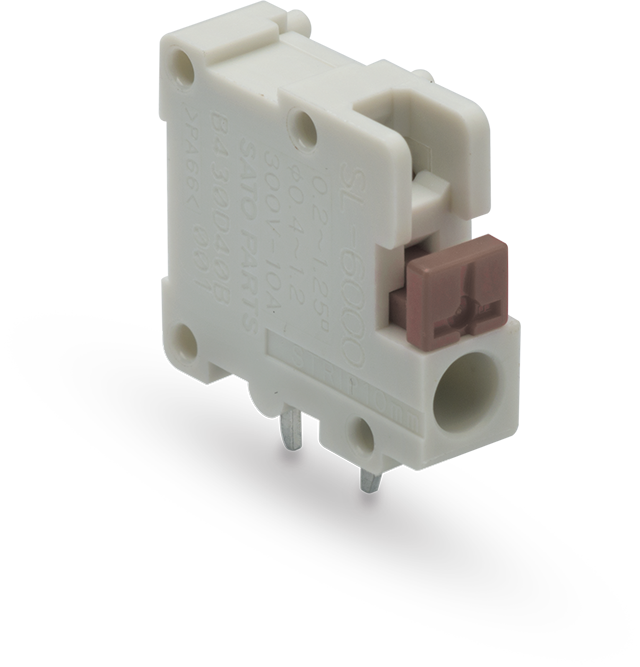

  • SL-6000-H-BR_1_products.png

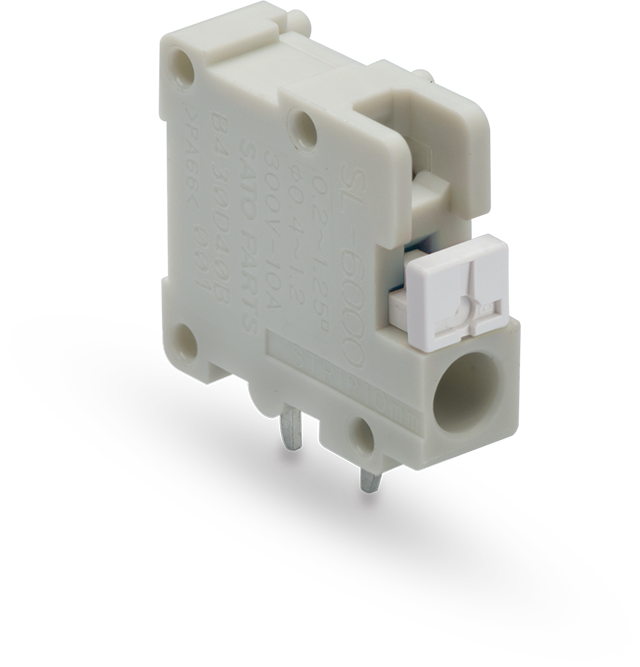

  • SL-6000-H-W_1_products.png

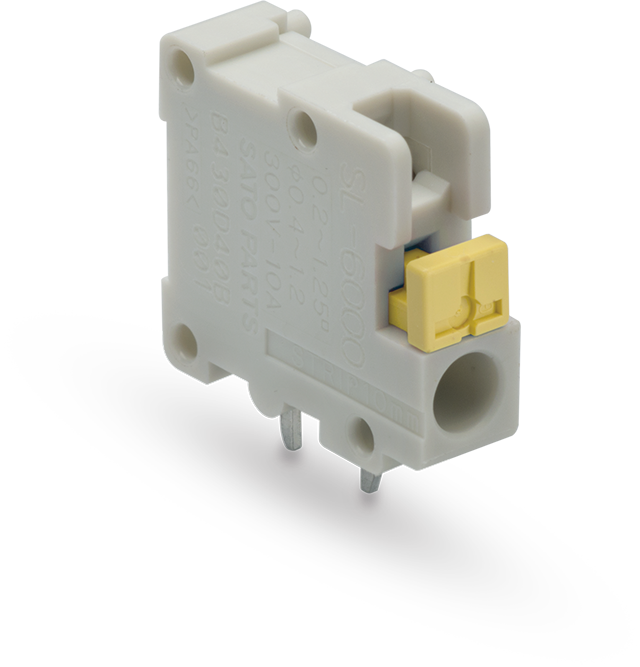

  • SL-6000-H-Y_1_products.png
  • Pitch 5.08mm
  • Stranded wire,Solid wire,Ferrule
  • Check hole
  • Press fit

Order model number

  • Order model numberSL-6000-H-[Button color]
  • Order exampleSL-6000-H-GY (Example of ordering with gray button color)

Button colors

  • GY

  • B

  • W

  • R

  • Y

  • G

  • BL

  • BR

All are standard colors

Basic information

Rating 300V-10A
Insulation resistance DC500V、100MΩ Min
Withstand voltage AC2000V (1minute)
Check hole On top
Main insulator Nylon66 (UL94V-0)
Button insulator PPE (UL94V-0)
Rating wire Solid wire : Φ1.2mm、Stranded wire : 1.25mm² Element wireΦ0.18mm Min
Wire range Solid wire : Φ0.4mm~Φ1.2mm (AWG16~AWG26)、Stranded wire : 0.2mm²~1.25mm² (AWG16~AWG24) Element wireΦ0.18mm Min、Ferrules : 0.25mm²~0.5mm² (AWG20~AWG24)
Terminal type PC terminal
Wire strip length 9~10mm
Body color W (White)
Button color W (White)、GY (Gray)、B (Black)、R (Red)、Y (Yellow)、G (Green)、BL (Blue)、BR (Brown) * All are standard products
Applicable tool for button Screw driver or others
Overview ①Any number of pole joint press fit.
Note 1.Fluororesin is applied to the buttons to facilitate the operation of the buttons. It may appear that white foreign matter has adhered due to the concentration and retention of this fluororesin in the concave parts of the button operation part, but there is no problem with the quality.
