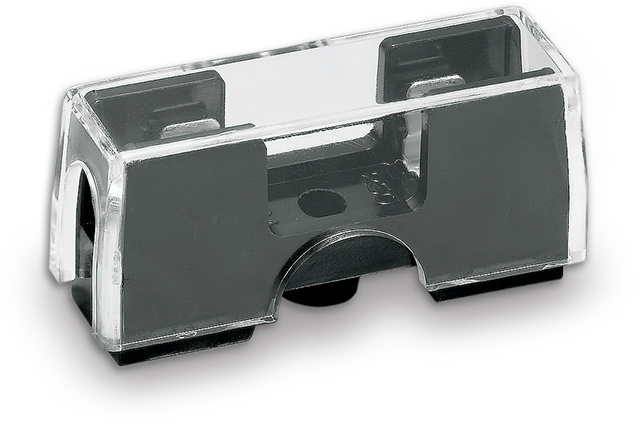

F-7101-N made in JAPAN
- Horizontal installation type
- Set of base & cover
Order model number
- Order model numberF-7101-N
- Order exampleF-7101-N
- Basic information
- Dimension
- Soldering heat resistance conditions
- Conformity product / Mate product
- Download
Mating fuse size
6.4mm×30mm
6.35mm×30mm
6.35mm×31.8mm
6.35mm×30mm
6.35mm×31.8mm
Basic information
| Rating | 250V-10A |
|---|---|
| Insulation resistance | DC500V、100MΩ Min |
| Withstand voltage | AC1500V (1minute) |
| Main insulator | Phenolic (UL94V-0) |

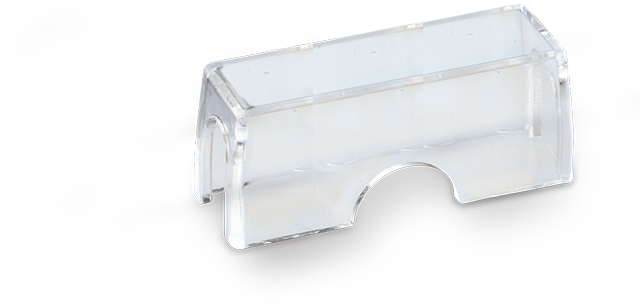

| Cover insulator | Styrol |
| Terminal type | Both soldering and 0.187in. tab terminal (t0.5mm(0.020in.)) for quick-connect terminations. |
| Body color | B (Black) |
| Cover color | C (Transparent) |
| Installation screw torque | 1.2N･m : with M4 screw |
| Note | 1.Set of F-3321-N-1P & F-7101-C. |
