C-3
-
Rating:30V-10A
Charging clip,Clip-Cap set
Cap color:Red,Black
Terminal:Soldering
-
C-3-10 cap only Use in combination with C-3-10K.
Cap color:Red,Black
-
Rating:10A
Charging clip,Clip only
Terminal:Soldering
-
Rating:30V-3A
Charging clip,Clip-Cap set
Cap color:Red,Black
Terminal:Screw terminal
-
Rating:30V-30A
Charging clip,Clip-Cap set
Cap color:Red,Black
Terminal:Soldering
-
C-3-30 cap only Use in combination with C-3-30K.
Cap color:Red,Black
-
Rating:30A
Charging clip,Clip only
Terminal:Soldering
-
C-3-3 cap only Use in combination with C-3-3K.
Cap color:Red,Black
-
Rating:3A
Charging clip,Clip only
Terminal:Screw terminal
-
Rating:30V-5A
Charging clip,Clip-Cap set
Cap color:Red,Black
Terminal:Screw terminal
-
Rating:30V-50A
Charging clip,Clip-Cap set
Cap color:Red,Black
Terminal:Soldering
-

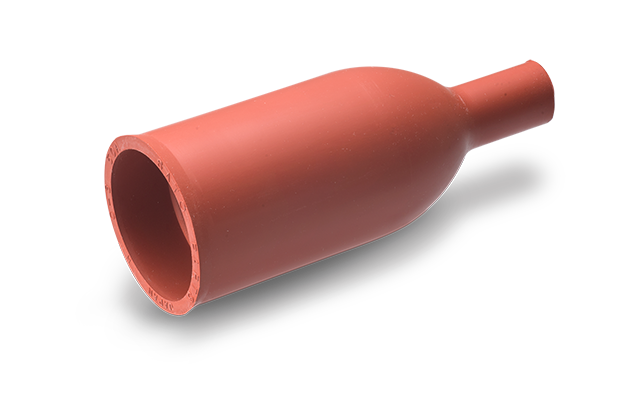

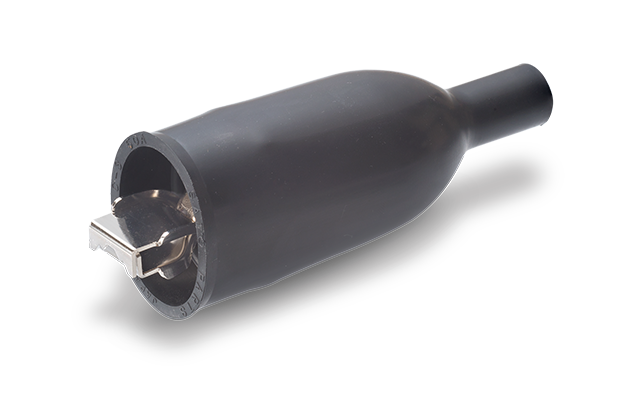

C-3-50 cap only Use in combination with C-3-50K.
Cap color:Red,Black
-
Rating:50A
Charging clip,Clip only
Terminal:Screw terminal
-

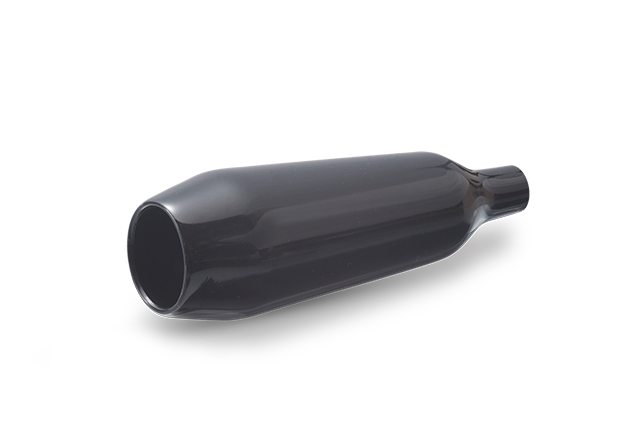

C-3-5 cap only Use in combination with C-3-5K.
Cap color:Red,Black
-
Rating:5A

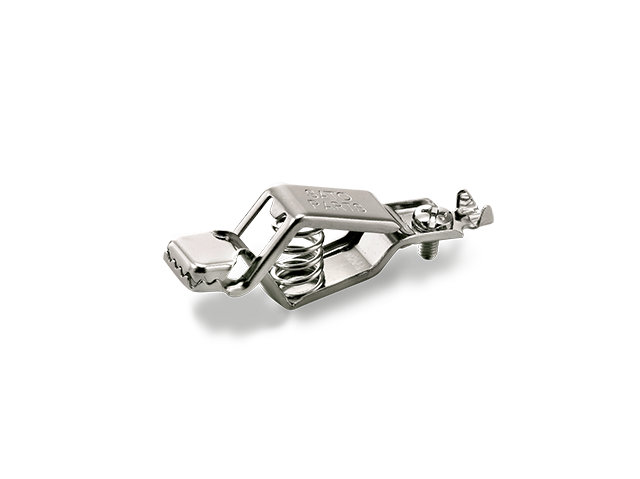

Charging clip,Clip only
Terminal:Screw terminal

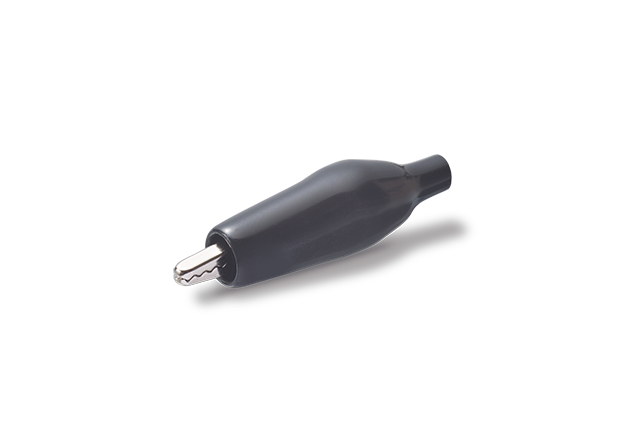

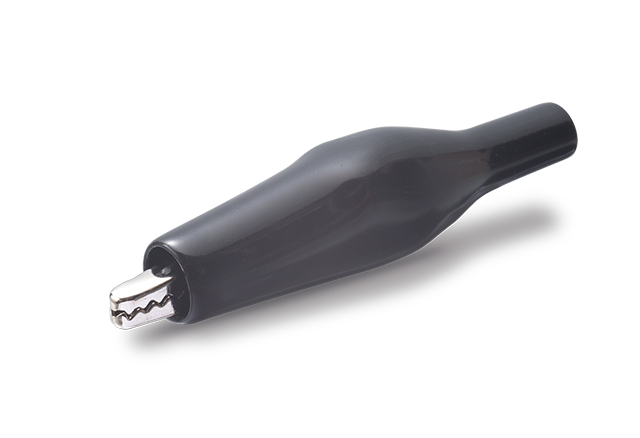

C-4
-
Rating:30V-7A
Clip
-
Rating:30V-5A
Clip
-
Rating:30V-3A
Clip
C-100
-
Rating:30V-5A
<Cover SET>Power clip Firmly grasps the screw head(M3,M4) for stable measurement and inspection.
The cover can be put on even after wiring is completed.
Insulation reinforced version available.(C-100-H)
Cover color:Red,Black,Green,White,Yellow,Blue
Terminal:Soldering
-

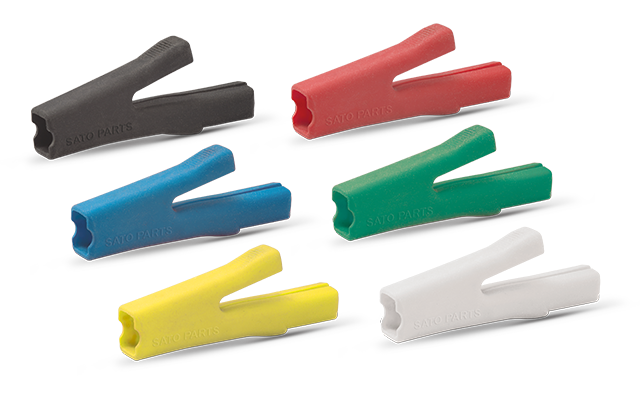

C-100 cover only Use in combination with C-100-K,TJ-100-KK.
Cover color:Red,Black,Green,White,Yellow,Blue
-
Rating:300V-5A
<Cover SET>Power clip Firmly grasps the screw head(M3,M4) for stable measurement and inspection.
C-100 cover insulation reinforced version.
The cover can be put on even after wiring is completed.
Cover color:Red,Black,Green,White,Yellow,Blue,Brown,Gray
Terminal:Soldering
-

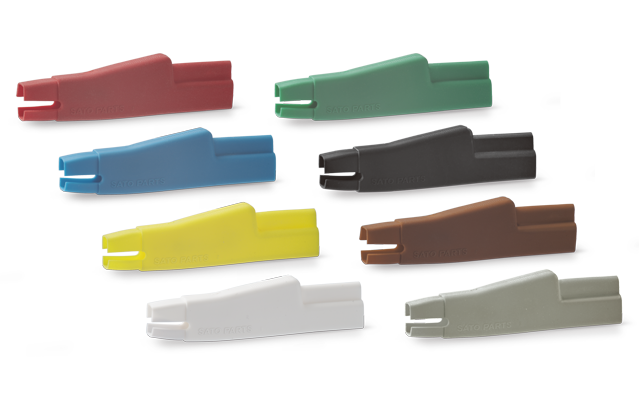

C-100-H cover only Use in combination with C-100-K,TJ-100-KK.
Cover color:Red,Black,Green,White,Yellow,Blue,Brown,Gray
-
Rating:5A
Power clip Firmly grasps the screw head(M3,M4) for stable measurement and inspection.
No cover
Terminal:Soldering
-
Rating:600V-20A
<Cover SET>Power clip Firmly grasps the screw head(M5,M6) for stable measurement and inspection.
The cover can be put on even after wiring is completed.
Cover color:Red,Black,Green,White,Yellow,Blue
Terminal:Soldering
-
C-100-X cover only Use in combination with C-100-XK.
Cover color:Red,Black,Green,White,Yellow,Blue
-
Rating:20A

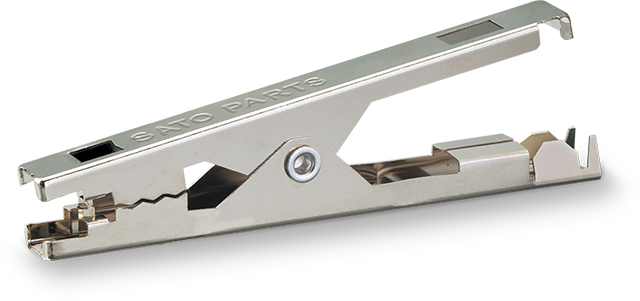

Power clip Firmly grasps the screw head(M5,M6) for stable measurement and inspection.
No cover
Terminal:Soldering
