CN-5
-
Rating:DC12V-1A
RCA connector，Plug-Jack set
Vinyl cap color:Red，Black
Terminal:Soldering
Installation:Fixed with nut
-
RCA connector，CN-5 jack side only
Terminal:Soldering
Installation:Fixed with nut
-
RCA connector，CN-5 plug side only
Vinyl cap color:Red，Black
Terminal:Soldering
CN-6
-
Rating:DC12V-1A
RCA relay connector，Plug-Jack set
Vinyl cap color:Red，Black
Terminal:Soldering
-
RCA relay connector，CN-6 jack side only
Vinyl cap color:Red，Black
Terminal:Soldering
-
RCA relay connector，CN-6 plug side only
Vinyl cap color:Red，Black
Terminal:Soldering

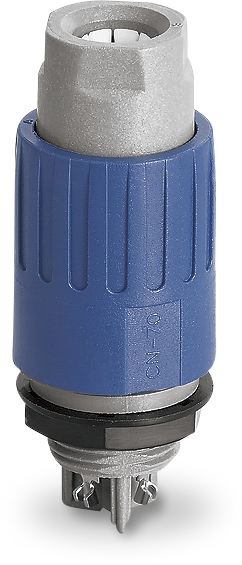

CN-70
-
Rating:AC125V-5A
Connedtor / Consent，Plug-Jack set Number of poles:2P，3P，4P With retainer
Terminal:Soldering
Installation:Fixed with nut Mounting holes:φ13.2mm(Width across flats)
-

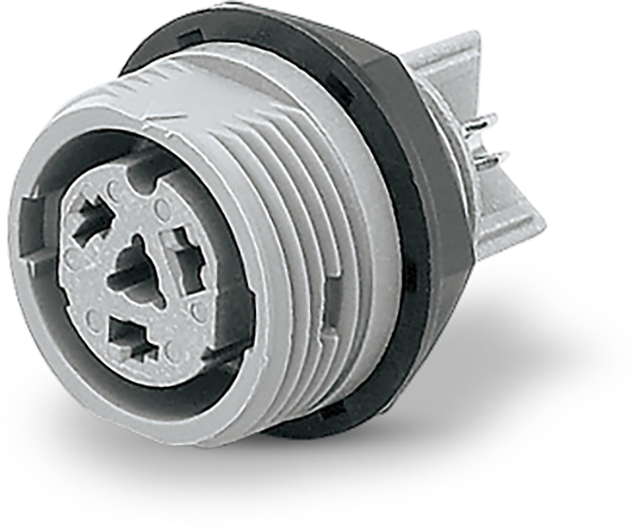

Connedtor / Consent CN-70-A receptacle side only Number of poles:2P，3P，4P
Terminal:Soldering
Installation:Fixed with nut Mounting holes:φ13.2mm(Width across flats)
-
Rating:AC125V-5A
Connedtor / Consent，Plug-Jack set Number of poles:2P，3P，4P With retainer
Terminal:Soldering
Installation:Fixed with nut Mounting holes:φ13.2mm(Width across flats)
-
Connedtor / Consent CN-70-B receptacle side only Number of poles:2P，3P，4P
Terminal:Soldering
-
Connedtor / Consent CN-70-A，B plug side only Number of poles:2P，3P，4P
Terminal:Soldering
CN-7017
-
Rating:DC12V-1A
RCA connector，Plug-Jack set
Brass cap color:Silver
Terminal:Soldering
Installation:Fixed with nut
-

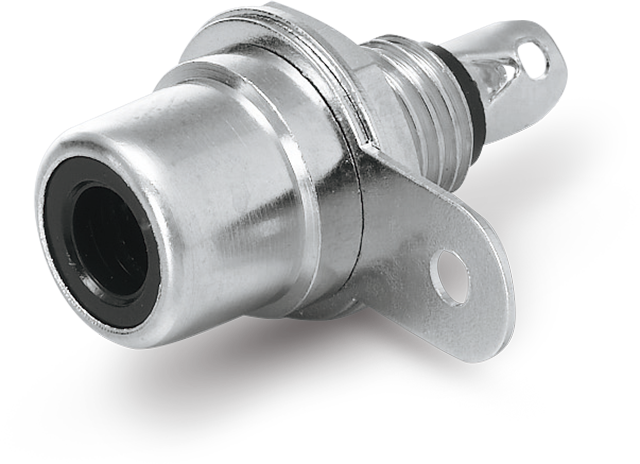

RCA connector，CN-7017 jack side only
Terminal:Soldering
Installation:Fixed with nut
-
RCA connector，CN-7017 plug side only Metal cap
Terminal:Soldering
CN-7018
-
Rating:DC12V-1A
RCA relay connector，Plug-Jack set
Brass cap color:Silver
Terminal:Soldering
-
RCA relay connector，CN-7018 jack side only Metal cap
Terminal:Soldering
-
RCA relay connector，CN-7018 plug side only Metal cap
Terminal:Soldering

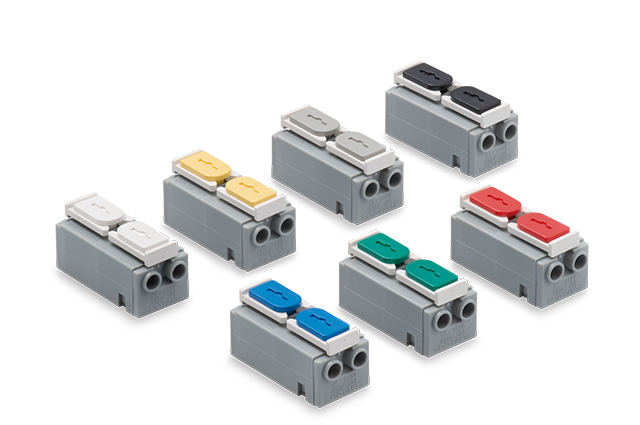

ML-3000
-
Rating:300V-10A
Terminal block for relay，2 wire connection per pole
Standard button color:Black White，Red，Green，Blue，Gray，Yellow
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)
Mounting:No fixed
With button stopper
-
Rating:300V-10A
Terminal block for relay，4 wire connection per pole
Standard button color:Black White，Red，Green，Blue，Gray，Yellow
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)
Mounting:No fixed
With button stopper
ML-7000
-
Rating:300V-10A
Terminal block for relay
Standard button color:Black，White，Red，Green，Blue，Gray，Yellow，Brown
Stranded wire and Solid wire Button lock Wire insertion angle:0°(Horizontal)
Mounting:No fixed(Fixed option available)
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-10A
Terminal block for relay
Standard button color:Black，White，Red，Green，Blue，Gray，Yellow，Brown
【One side:Stranded wire and Solid wire Button lock】/【Other side:Solid wire only No button lock】 Wire insertion angle:0°(Horizontal)
Mounting:No fixed(Fixed option available)
Certification standards:UL，CSA(C-UL)，TÜV
-
Mounting block for ML-7000
Fixed with M3～M4 screw or cable tie

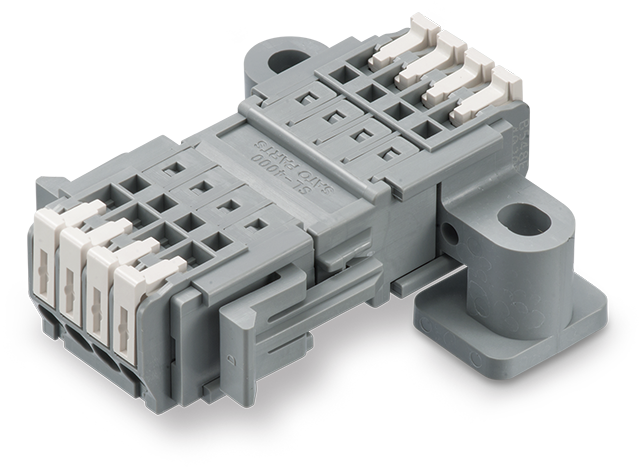

SL-4000
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
Lever lock type 2-piece terminal block for relay，receptacle side only
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P excluding AWSH，AWSV:DC300V)

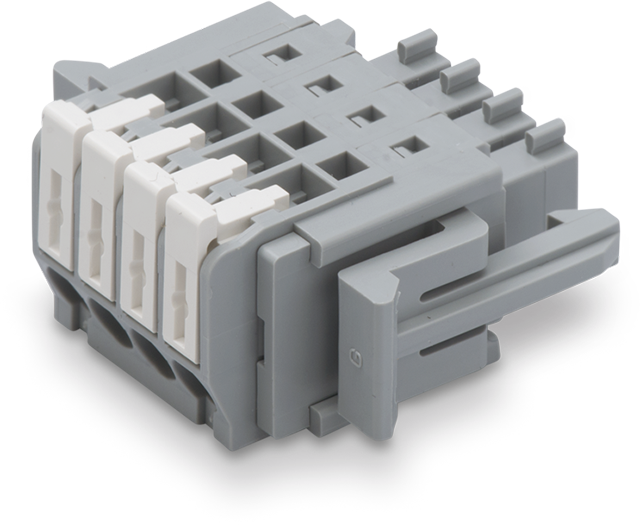

Lever lock type 2-piece terminal block for relay/PCB shared，plug side only
Pitch between terminals:3.81mm，Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
＜SET＞Lever lock type 2-piece terminal block for relay
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Mounting:No fixed
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
＜SET＞Lever lock type 2-piece terminal block for relay
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Installation:Fixed to panel with screws
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
Lever lock type 2-piece terminal block for relay，receptacle side only
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Installation:Fixed to panel with screws
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
Lever lock type 2-piece terminal block for relay，receptacle side only
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Installation:Fixed with screws
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:300V-5A(2P，3P，4P，5P:DC300V)
＜SET＞Lever lock type 2-piece terminal block for relay
Pitch between terminals:3.81mm Number of position(s):2P，3P，4P，5P，8P，10P，12P
Stranded wire and Solid wire Button lock
Installation:Fixed with screws
Certification standards:UL，CSA(C-UL)，TÜV

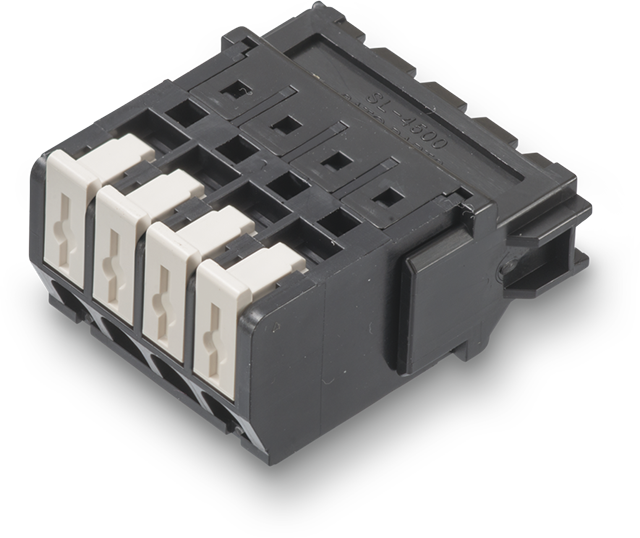

SL-4500
-
Rating:DC300V-5A
Lever lock type 2-piece terminal block for relay，receptacle side only
Pitch between terminals:5.08mm Number of position(s):2P，3P，4P，5P
Stranded wire and Solid wire Button lock
Certification standards:UL，CSA(C-UL)，TÜV
