1. SATO PARTS CO.,LTD.
  2. Product Category
  3. Contorol knob
Product mass
Product mass
Precautions for use
General notes

K-300 made in JAPAN

  • K-300series_1_products.png
  • K-300-BL_1_products.png
  • K-300-LU_1_products.png
  • K-300-R_1_products.png
  • K-300-W_1_products.png
  • K-300-Y_1_products.png
  • K-300series_1_products.png
  • K-300-BL_1_products.png
  • K-300-LU_1_products.png
  • K-300-R_1_products.png
  • K-300-W_1_products.png
  • K-300-Y_1_products.png
  • Collet chuck type

Order model number

  • Order model numberK-300-[Color]

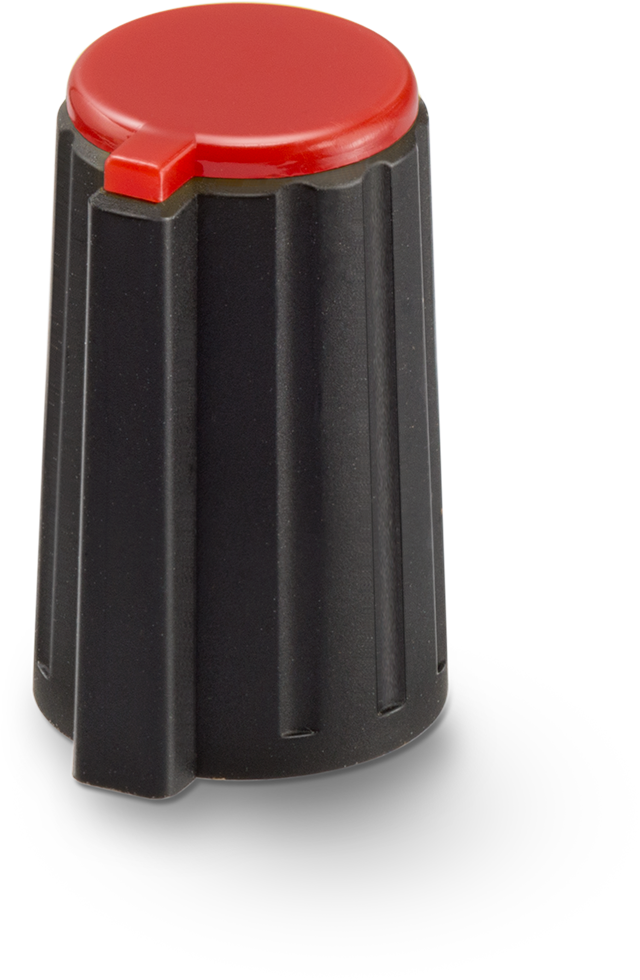

  • Order exampleK-300-R (An example of ordering with a red color.)

Installation work example

Since it is a collet chuck type, it can be tightened from directly above the knob.

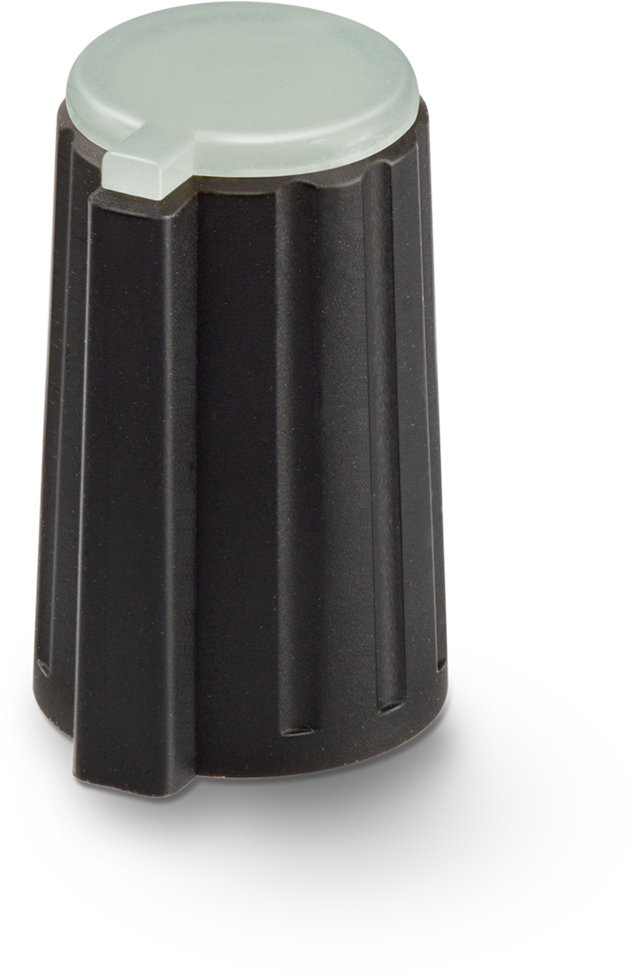

Luminescent type

There is a phosphorescent type (LU) that glows in a dark place. It also reacts to ultraviolet rays and blue light and glows. * The phosphorescent type is cap color LU only.

Cap color

  • R

  • BL

  • Y

  • W

  • LU

Basic information

Body material Nylon66
Cap material Nylon6 : R (Red)、BL (Blue)、Y (Yellow)、W (White) Polypropylene : LU (Luminous)
Body color B (Black)
Cap color R (Red)、BL (Blue)、Y (Yellow)、W (White)、LU (Luminous)
Screw torque 0.3N･m Max : M2.5 screw
Applicable tools Phillips screwdriver (+No.1)
Note 1.Collet chuck type. 2.Mating shaft diameter Φ3.2mm and Φ3.0mm.
