ML-1
-
Rating:300V-15A
2-row terminal block for relay,with marking strip and cover
Pitch between terminals:10mm Number of position(s):2P to 18P
Terminal screw:M3.5 Screw with square washer
Installation:Fixed to panel with screws
Certification standards:UL,TÜV
ML-11
-
Rating:250V-30A
2-row terminal block for relay,with marking strip and cover
Pitch between terminals:15mm Number of position(s):2P to 20P
Terminal screw:M5 Screw with square washer
Installation:Fixed to panel with screws
-
Rating:500V-50A
2-row terminal block for relay,with marking strip and cover
Pitch between terminals:16mm Number of position(s):2P to 20P
Terminal screw:M6 Screw with square washer
Installation:Fixed to panel with screws

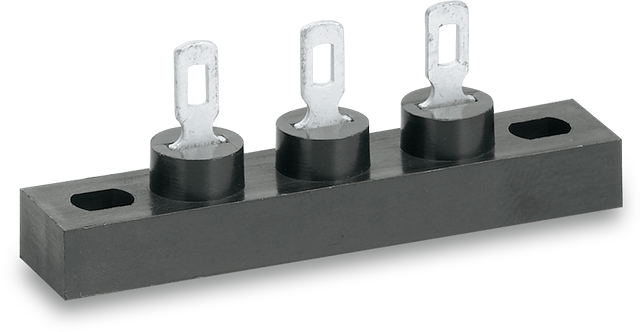

ML-18
-
Rating:125V-10A
Lug terminal block Soldering terminal
Pitch between terminals:9mm Number of position(s):3P,5P,10P
Installation:Fixed to panel with screws
Fixing and relaying wires by soldering
ML-20
-
Rating:250V-20A
2-row terminal block for relay,with marking strip and cover
Pitch between terminals:11mm Number of position(s):2P to 6P,8P,10P,12P
Terminal screw:M4 Screw with square washer
Installation:Fixed to panel with screws
Certification standards:UL,CSA

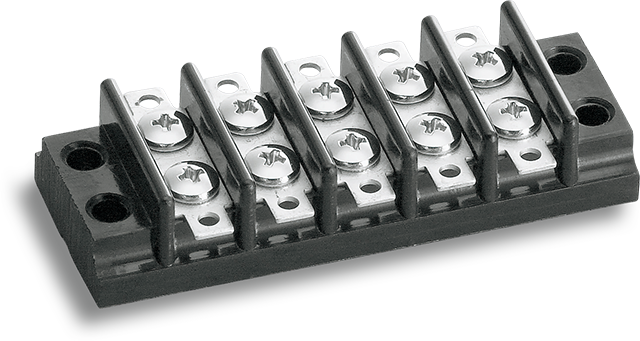

ML-24
-
Rating:250V-6A
2-row terminal block for relay
Pitch between terminals:8mm Number of position(s):1P to 20P
Terminal screw:M2.6 Screw
Installation:Fixed to panel with screws

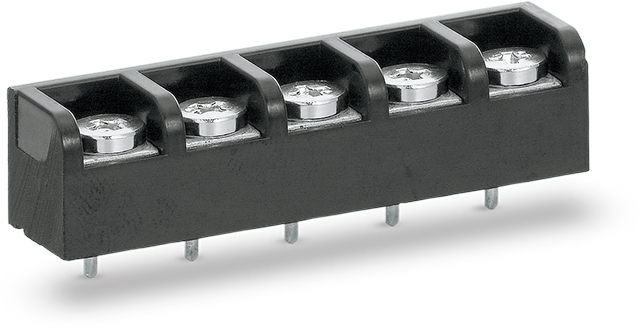

ML-30
-
Rating:250V-6A
Terminal block for PCB
Pitch between terminals:9.45mm Number of position(s):1P to 20P
Terminal screw:M3 Screw
Certification standards:UL,CSA,TÜV

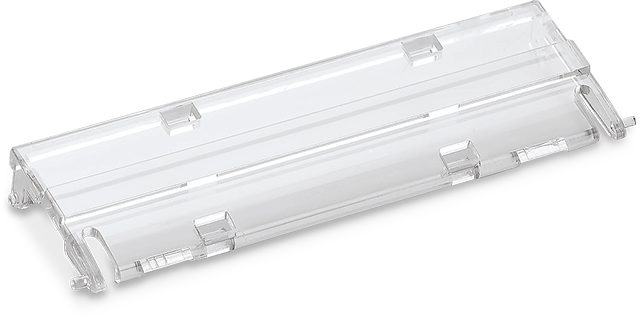

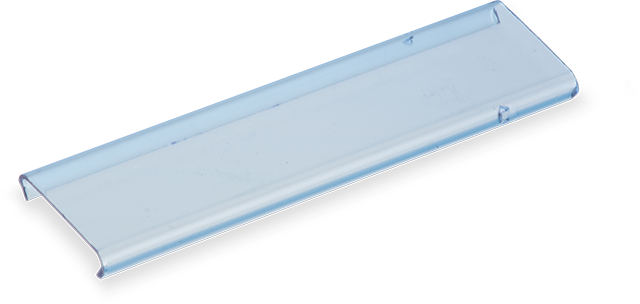

ML-40
-

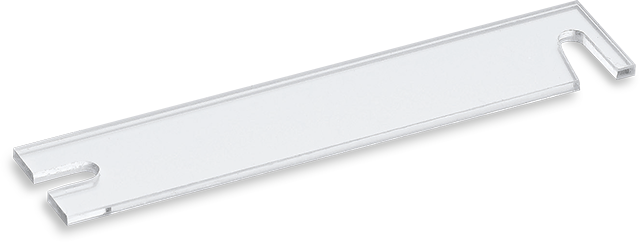

Cover for ML-40,ML-41
Number of position(s):1P to 20P
-
Solderin fittings for ML-40 Can be relayed
-

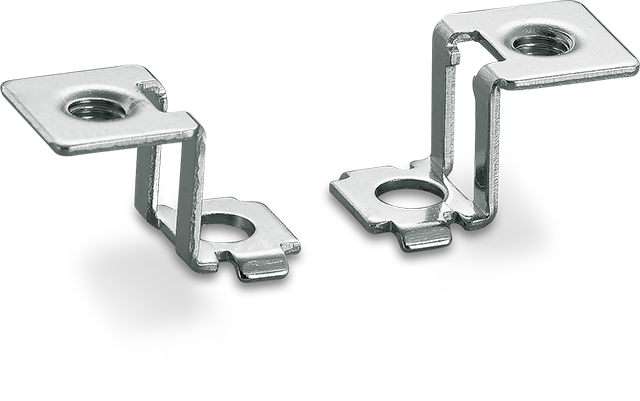

Cover mounter bracket for ML-40,ML-41
Can be used on terminal blocks with mounting holes on both ends.
-

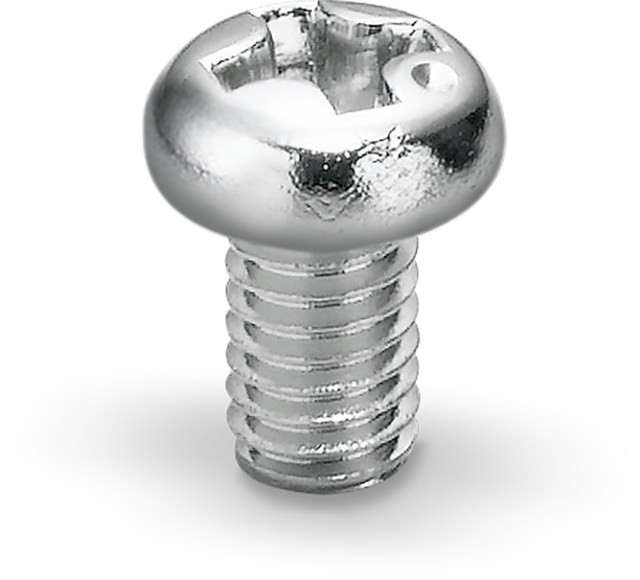

Cover fixing screw for ML-40-3C,ML-50-4C
-
Marking strip for ML-40,ML-41
Number of position(s):1P to 20P
Must be used in combination with ML-40-3C.
-

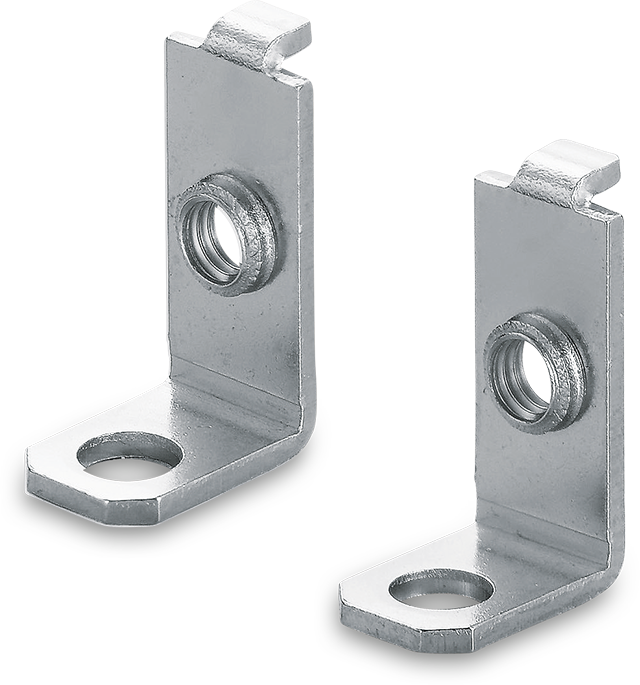

Horizontal mounting bracket
Can be used on terminal blocks with mounting holes on both ends.
-
Rating:250V-10A
Terminal block for panel through
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with square washer/Terminal inside the panel:Soldering and 0.110in. tab terminal (t0.8mm(0.031in.)) for quick-connect terminations
Installation:Fixed to panel with screws
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for panel through
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with washer/Terminal inside the panel:Soldering and 0.110in. tab terminal (t0.8mm(0.031in.)) for quick-connect terminations
Installation:Fixed to panel with screws
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with square washer
Can be fixed to the PCB with screw and nut.
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with washer
Can be fixed to the PCB with screw and nut.
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 22P
Terminal screw:M3 Screw with square washer
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 22P
Terminal screw:M3 Screw with washer
Certification standards:UL,CSA
-

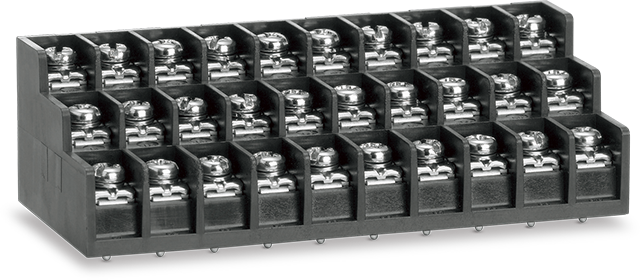

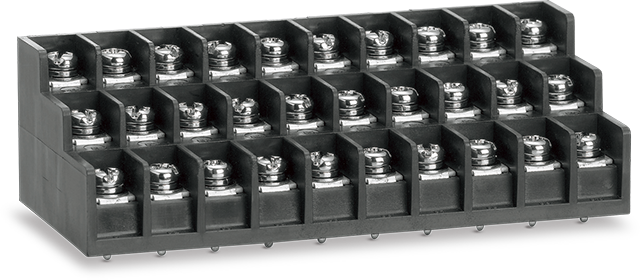

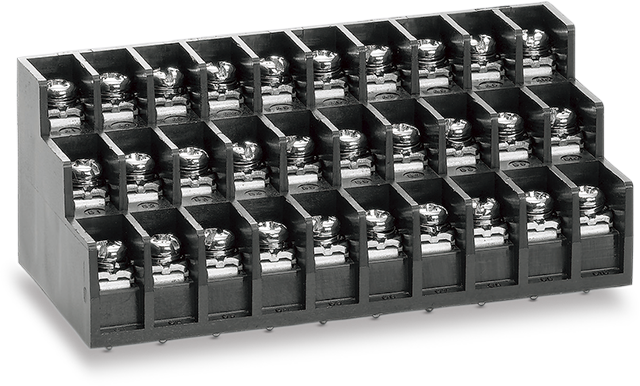

Rating:250V-10A
3-stage terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):30P
Terminal screw:M3 Screw with square washer
Certification standards:UL,CSA
-
Rating:250V-10A
3-stage terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):30P
Terminal screw:M3 Screw with washer
Certification standards:UL,CSA
-
Rating:250V-10A
2-stage terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):20P
Terminal screw:M3 Screw with square washer
-
Rating:250V-10A
2-stage terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):20P
Terminal screw:M3 Screw with washer

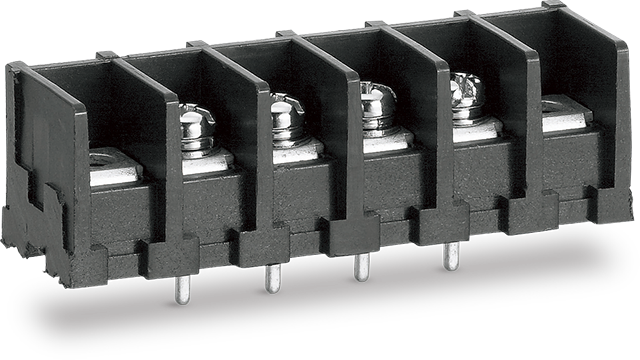

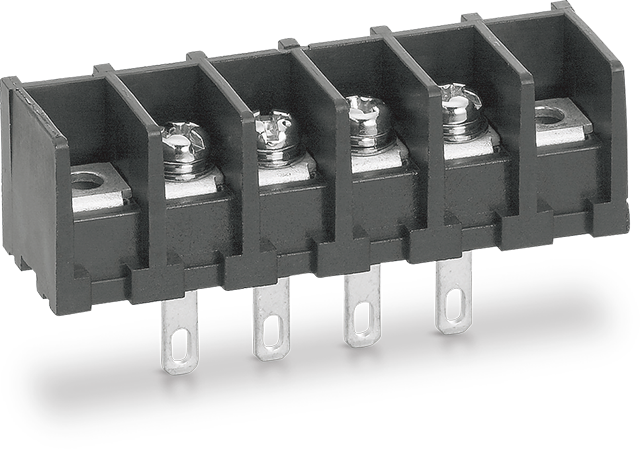

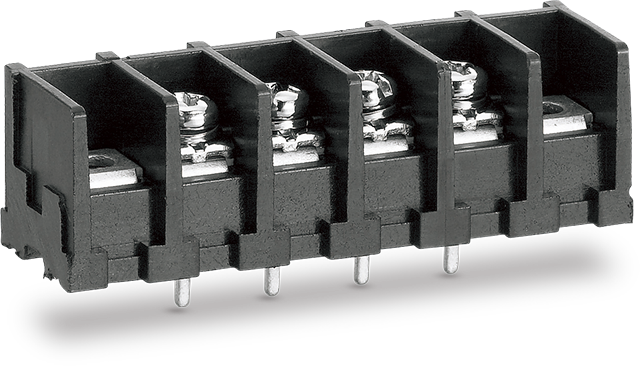

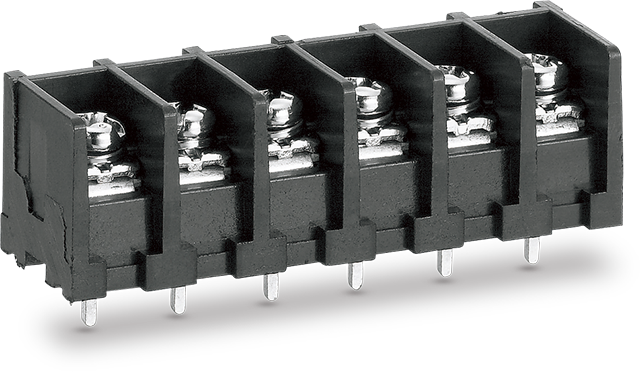

ML-41
-
Rating:250V-10A
Terminal block for panel through
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with square washer/Terminal inside the panel:Soldering and 0.110in. tab terminal (t0.8mm(0.031in.)) for quick-connect terminations
Installation:Fixed to panel with screws
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for panel through
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with washer/Terminal inside the panel:Soldering and 0.110in. tab terminal (t0.8mm(0.031in.)) for quick-connect terminations
Installation:Fixed to panel with screws
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with square washer
Can be fixed to the PCB with screw and nut.
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with washer
Can be fixed to the PCB with screw and nut.
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with square washer
Certification standards:UL,CSA
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 20P
Terminal screw:M3 Screw with washer
Certification standards:UL,CSA

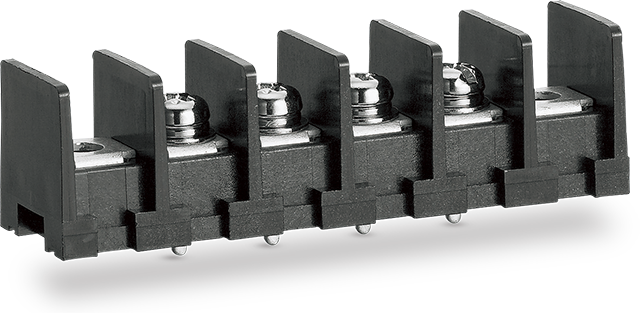

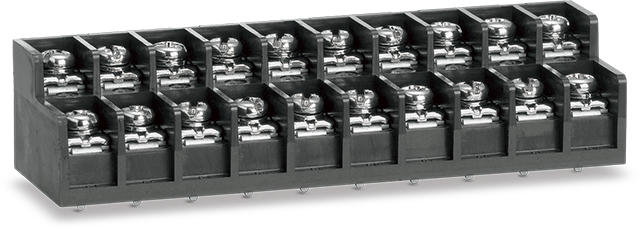

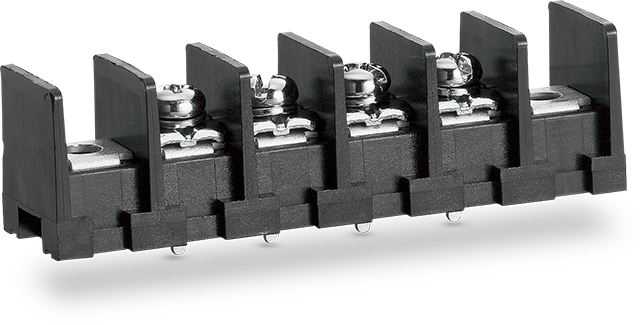

ML-50
-
Cover for ML-50,ML-51
Number of position(s):1P to 20P
