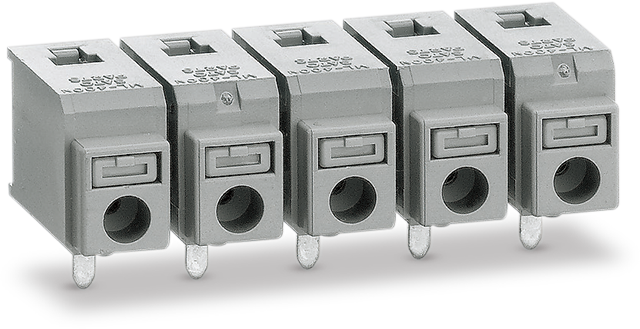

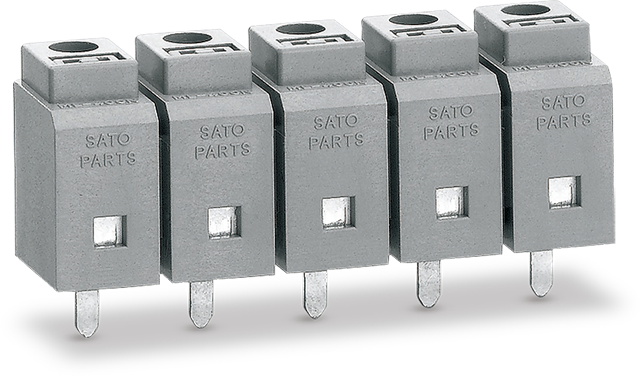

ML-400
-
Rating:250V-7A
Terminal block for PCB Right angle
Pitch between terminals:7.62mm Number of position(s):1P to 15P
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)
Certification standards:UL，CSA
-
Rating:250V-7A
Terminal block for PCB
Pitch between terminals:7.62mm Number of position(s):1P to 15P
Stranded wire and Solid wire Wire insertion angle:90°(Vertical)
Certification standards:UL，CSA
ML-700
-
Rating:50V-3A
Terminal block for PCB Right angle
Pitch between terminals:2.54mm Number of position(s):2P to 20P
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)
Certification standards:UL，CSA，TÜV
-

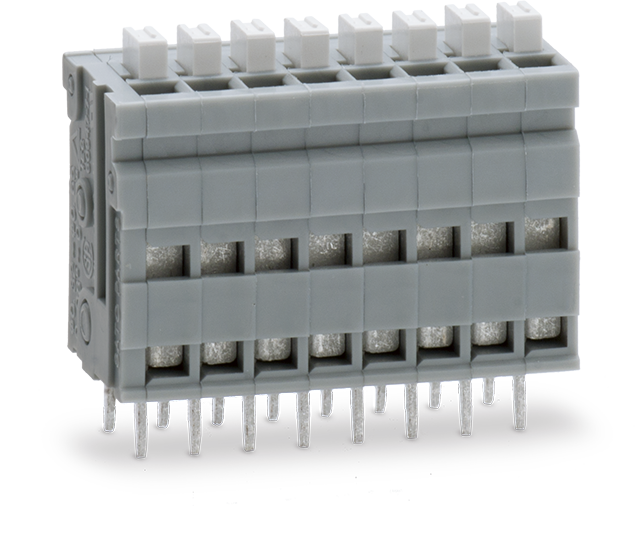

Rating:50V-3A
Terminal block for PCB
Pitch between terminals:2.54mm Number of position(s):2P to 20P
Stranded wire and Solid wire Wire insertion angle:90°(Vertical)
Certification standards:UL，CSA，TÜV

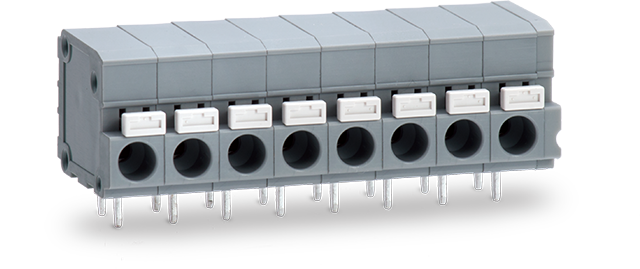

ML-800
-
Rating:250V-10A
Terminal block for PCB Right angle
Pitch between terminals:5mm Number of position(s):1P to 20P
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)
Certification standards:UL，CSA，TÜV
-
Rating:250V-10A
Terminal block for PCB
Pitch between terminals:5mm Number of position(s):1P to 20P
Stranded wire and Solid wire Wire insertion angle:90°(Vertical)
Certification standards:UL，CSA，TÜV

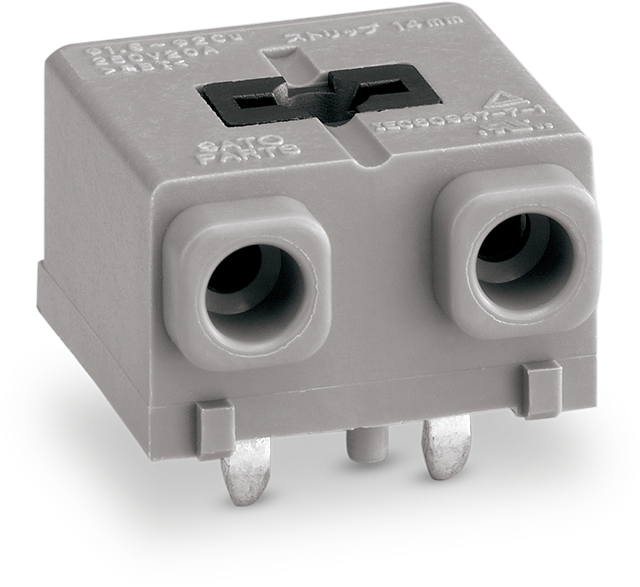

ML-850
-

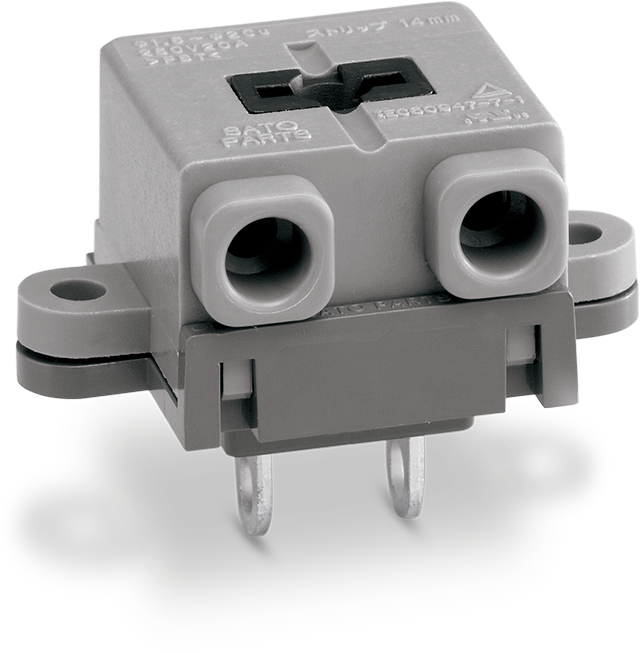

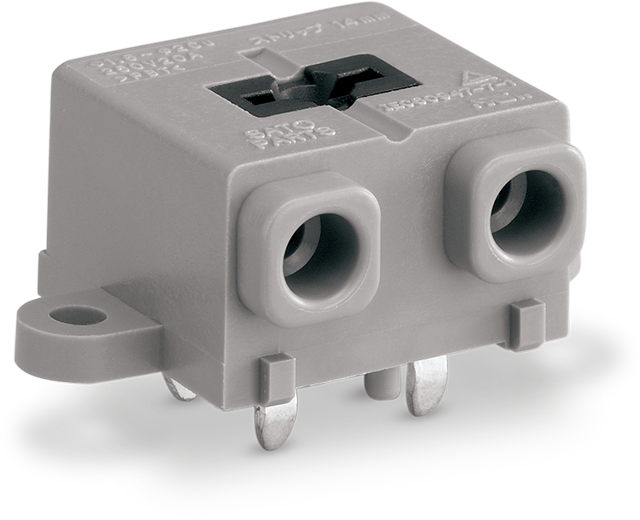

Rating:250V-20A
Terminal block for panel through
Pitch between terminals:8mm Number of position(s):2P
Solid wire only Wire insertion angle:0°(Horizontal) Inside the panel:Soldering terminal
Installation:Fixed to panel with screws
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:250V-20A
Terminal block for PCB with screw fixation Right angle
Pitch between terminals:9mm Number of position(s):2P
Solid wire only Wire insertion angle:0°(Horizontal)
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:250V-20A
Terminal block for PCB Right angle
Pitch between terminals:9mm Number of position(s):2P
Solid wire only Wire insertion angle:0°(Horizontal)
Certification standards:UL，CSA(C-UL)，TÜV
-

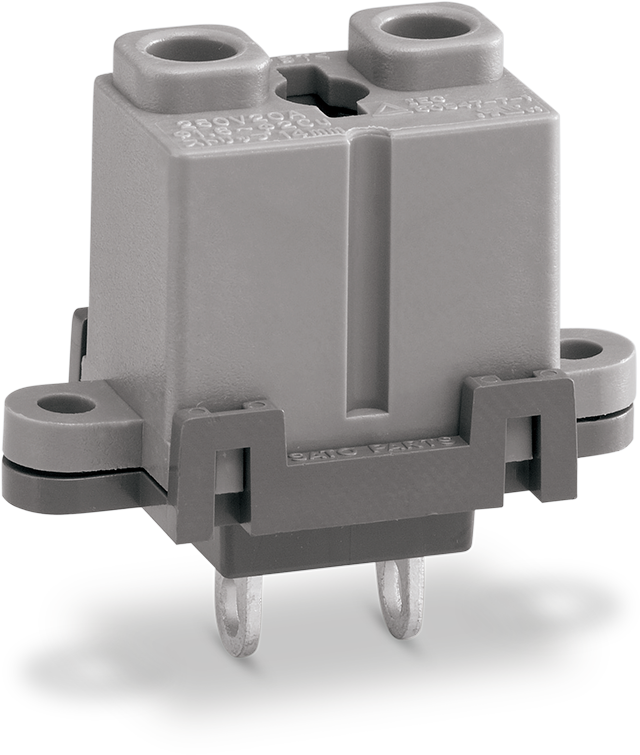

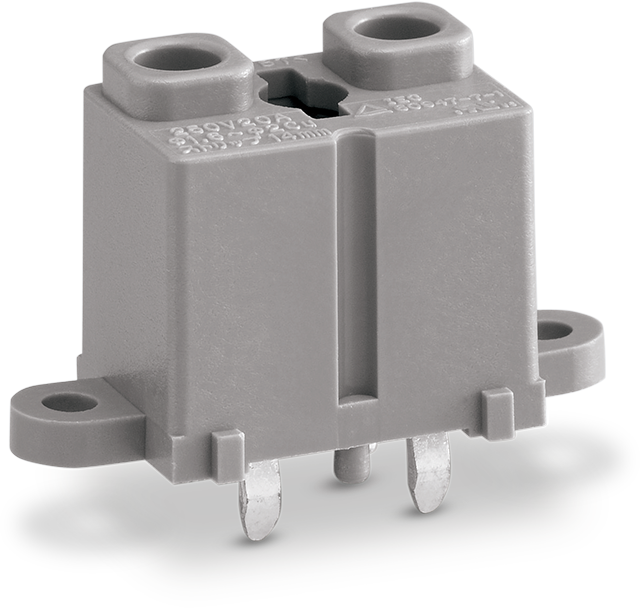

Rating:250V-20A
Terminal block for panel through
Pitch between terminals:8mm Number of position(s):2P
Solid wire only Wire insertion angle:90°(Vertical) Inside the panel:Soldering terminal
Installation:Fixed to panel with screws
Certification standards:UL，CSA(C-UL)，TÜV
-
Rating:250V-20A
Terminal block for PCB with screw fixation Right angle
Pitch between terminals:9mm Number of position(s):2P
Solid wire only Wire insertion angle:90°(Vertical)
Certification standards:UL，CSA(C-UL)，TÜV
-

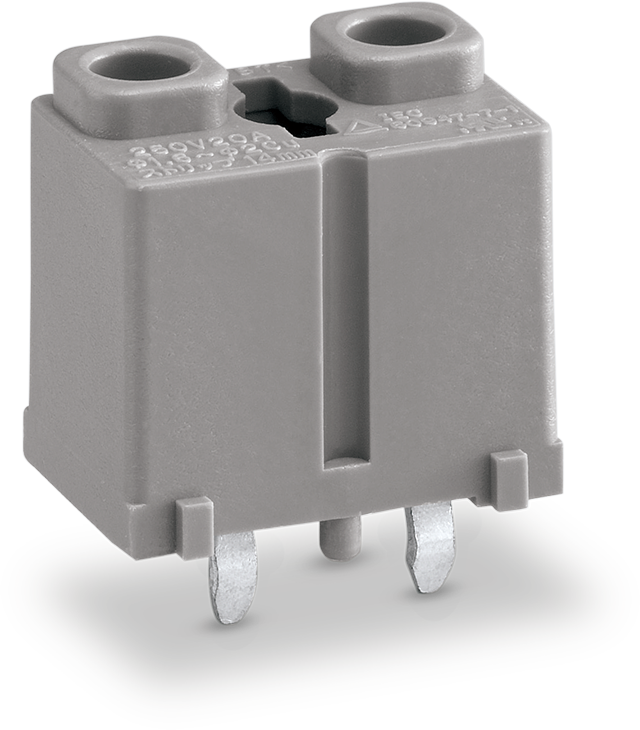

Rating:250V-20A
Terminal block for PCB Right angle
Pitch between terminals:9mm Number of position(s):2P
Solid wire only Wire insertion angle:90°(Vertical)
Certification standards:UL，CSA(C-UL)，TÜV
ML-860
-

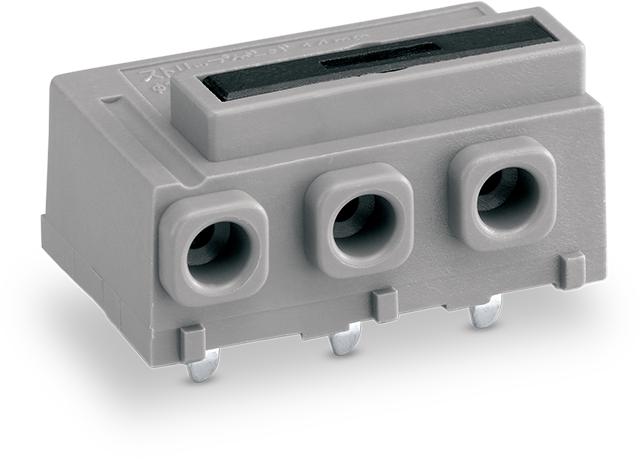

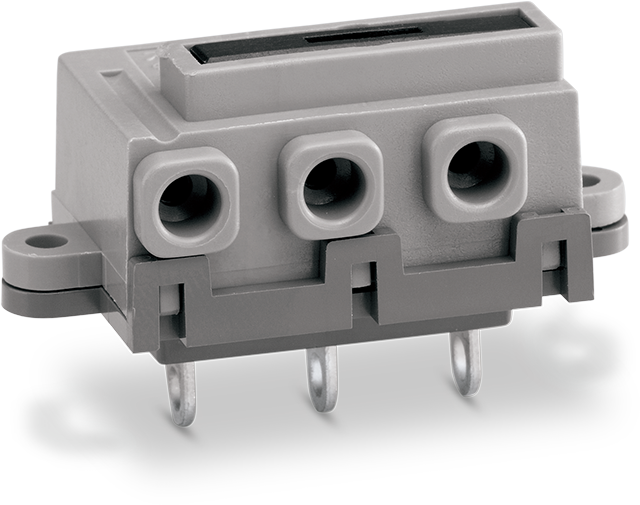

Rating:250V-20A
Terminal block for panel through
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:0°(Horizontal) Inside the panel:Soldering terminal
Installation:Fixed to panel with screws
-
Rating:250V-20A
Terminal block for PCB with screw fixation Right angle
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:0°(Horizontal)
-
Rating:250V-20A
Terminal block for PCB Right angle
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:0°(Horizontal)
-

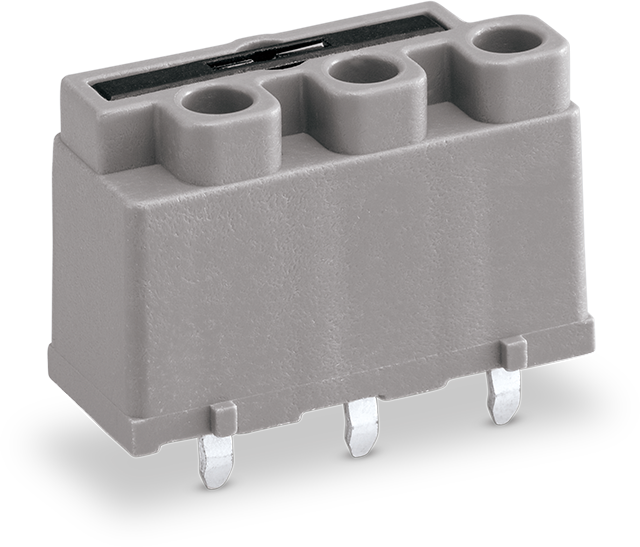

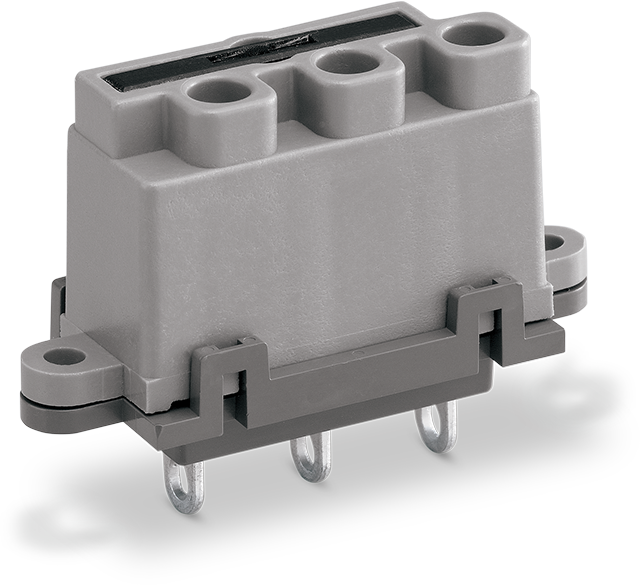

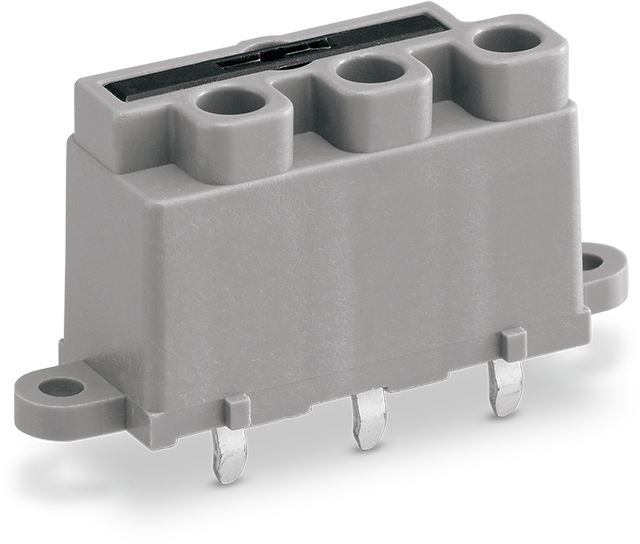

Rating:250V-20A
Terminal block for panel through
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:90°(Vertical)，Inside the panel:Soldering terminal
Installation:Fixed to panel with screws
-
Rating:250V-20A
Terminal block for PCB with screw fixation Right angle
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:90°(Vertical)
-
Rating:250V-20A
Terminal block for PCB Right angle
Pitch between terminals:10mm Number of position(s):3P
Solid wire only Wire insertion angle:90°(Vertical)

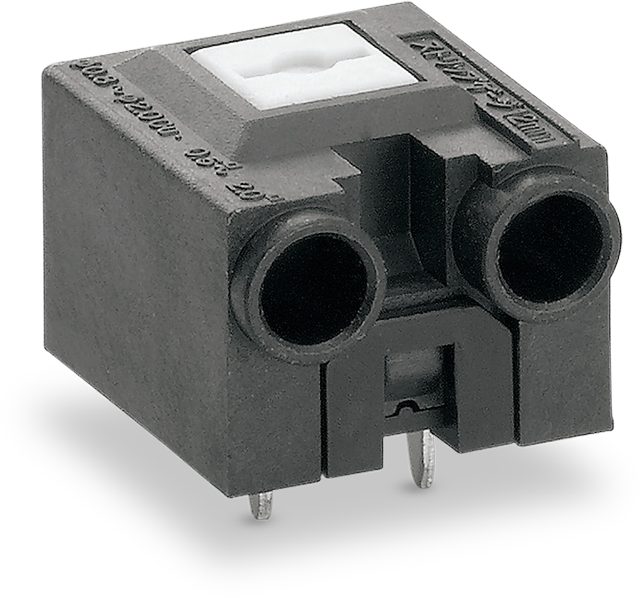

ML-870
-
Rating:300V-10A
Terminal block for PCB
Pitch between terminals:6.9mm Number of position(s):2P
Stranded wire and Solid wire Wire insertion angle:0°(Horizontal)

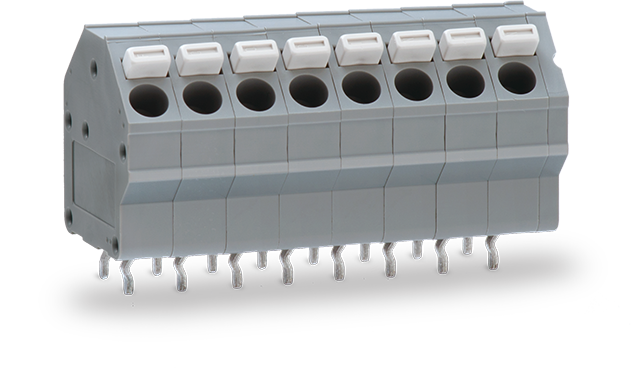

ML-880
-
Rating:300V-10A/150V-15A
Terminal block for PCB
Pitch between terminals:5mm Number of position(s):1P to 20P
Stranded wire and Solid wire Wire insertion angle:45°
Certification standards:UL，CSA
-
Rating:300V-10A/150V-15A
Terminal block for PCB
Pitch between terminals:7.5mm Number of position(s):2P to 20P
Stranded wire and Solid wire Wire insertion angle:45°
Certification standards:UL，CSA

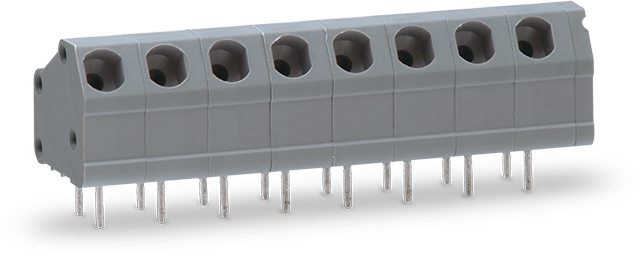

ML-950
-
Rating:300V-7A
Terminal block for PCB
Pitch between terminals:5mm Number of position(s):1P to 20P
Stranded wire and Solid wire Wire insertion angle:30° No release button(Release with a flathead screwdriver)
Certification standards:UL，CSA

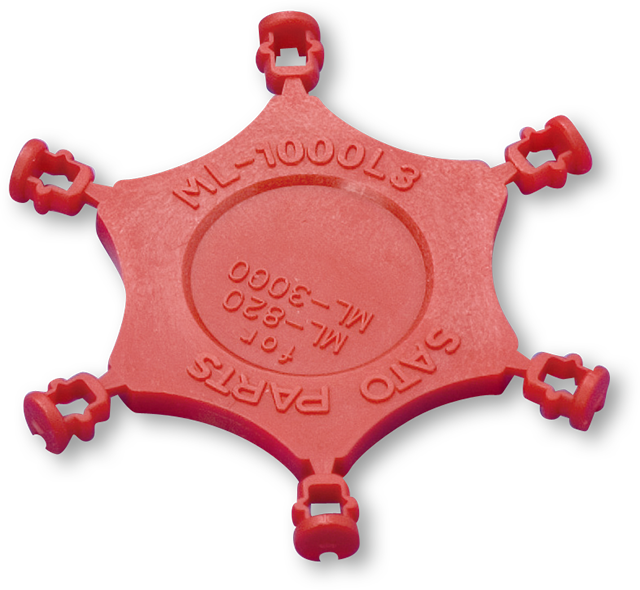

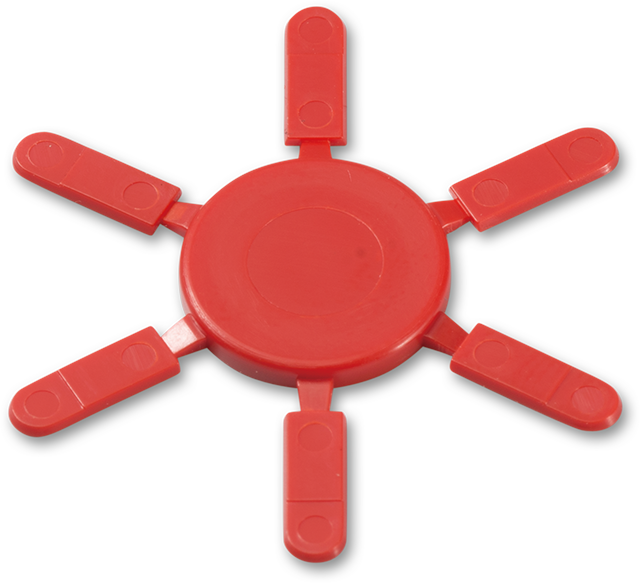

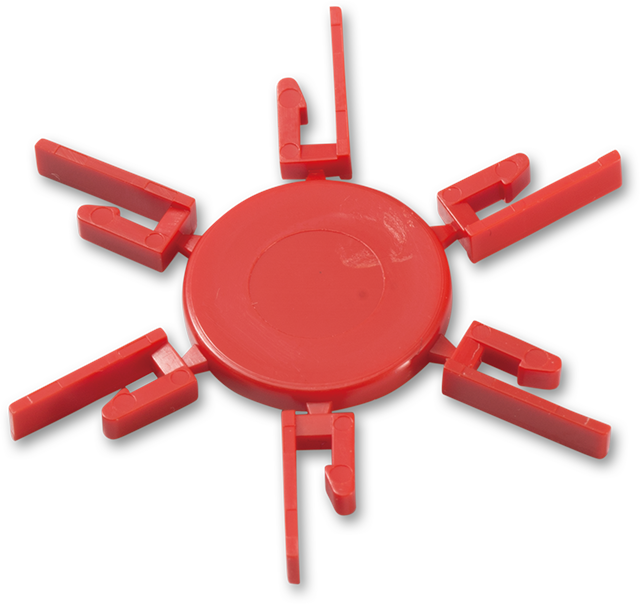

ML-1000
-
Prevention of incorrect insertion
You can prevent accidental connection to places where wires are not connected.
-
Prevention of incorrect insertion
You can prevent accidental connection to places where wires are not connected.
-
Prevention of incorrect insertion
You can prevent accidental connection to places where wires are not connected.
-
Prevention of incorrect insertion
It serves as a key for plugs and receptacles and can prevent incorrect connection.
-
Prevention of incorrect insertion
It serves as a key for plugs and receptacles and can prevent incorrect connection.
-
Prevention of incorrect insertion
It serves as a key for plugs and receptacles and can prevent incorrect connection.

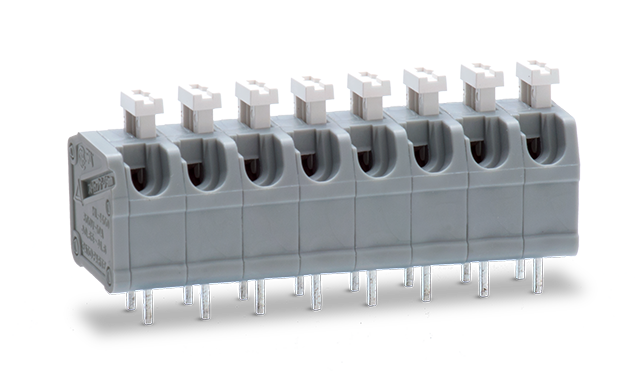

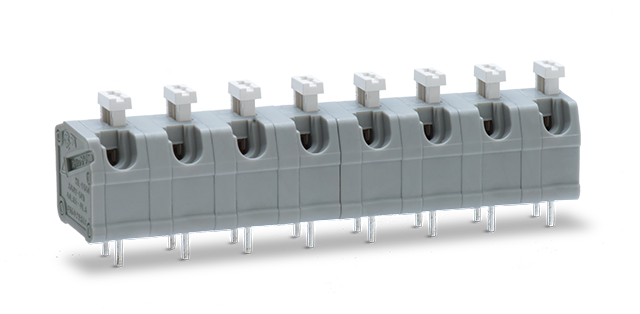

ML-1400
-
Rating:300V-10A
Terminal block for PCB
Pitch between terminals:5mm Number of position(s):1P to 20P
Solid wire only Wire insertion angle:20°
Certification standards:UL，CSA，TÜV
-
Rating:300V-10A
Terminal block for PCB，Low type release button
Pitch between terminals:5mm Number of position(s):1P to 20P
Solid wire only Wire insertion angle:20°
Certification standards:UL，CSA，TÜV
