F-7165 made in JAPAN Discontinued
Notice of partial product discontinuation.
125V 1A ~ 5A products have been discontinued on April 1, 2016.
Notice of partial product discontinuation.
20A, 25A and 30A products have been discontinued on November 1, 2010.
- DIA10.31×38.1mm
- Normal blow
Order model number
- Order model numberF-7165-[Rating]
- Order exampleF-7165-250V-2A (An example of ordering with AC250V-2A.)
Basic information
| Size | 10.3mm×38.1 |
|---|---|
| Rating | AC250V-1A、 AC250V-2A、 AC250V-3A、 AC250V-5A、AC250V-10A、 AC250V-15A |
| Interrupting rating | 300A |
| Pre-arcing characteristic | Normal blow |
| Main insulator | Glass |

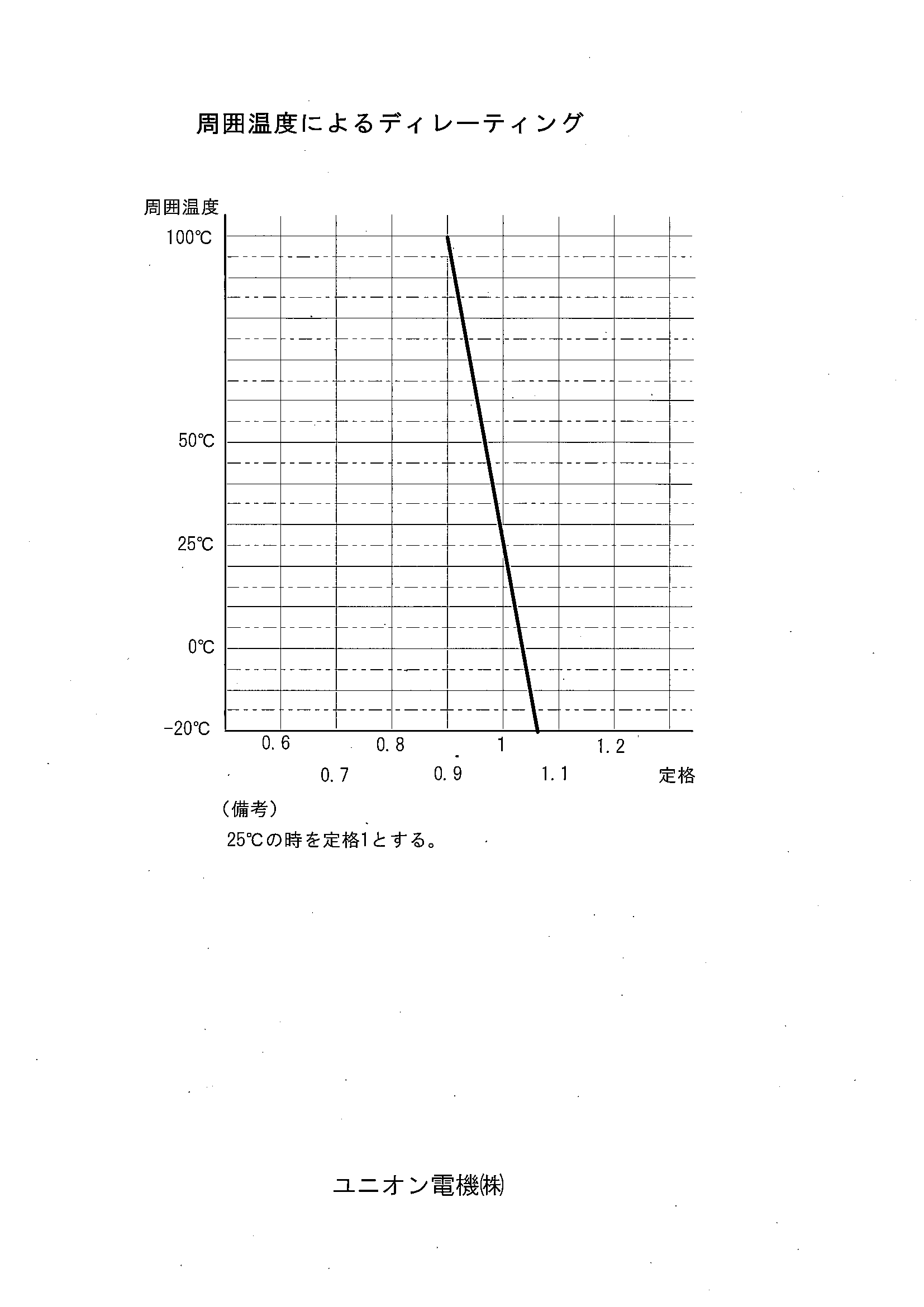

Temperature Re-rating Curve
Rerating depicted in this curve is in addition to the industry practice derating of 30% for continuous operation.
