FG-10
- DIA5.2×20mm
- Normal blow
Order model number
- Order model numberFG-10-[Rating]
- Order exampleFG-10-2A (An example of ordering with AC125V-2A.)
Basic information
| Size | 5.2mm ×20mm |
|---|---|
| Rating | AC125V-0.1A、AC125V-0.2A、 AC125V-0.3A、AC125V-1A、 AC125V-1.5A、 AC125V-2A、 AC125V-3A、AC125V-5A、 AC125V-6A、 AC125V-7A、 AC125V-8A、AC125V-10A |
| Interrupting rating | 500A |
| Pre-arcing characteristic | Normal blow |
| Main insulator | Glass |
Temperature Re-rating Curve
Rerating depicted in this curve is in addition to the industry practice derating of 30% for continuous operation.
Related products
-

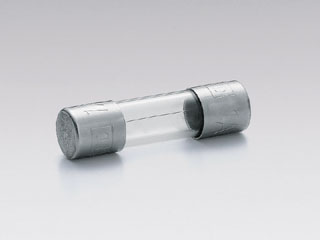

F-7142
