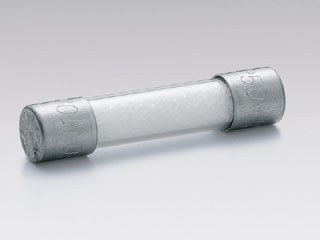

FG-20 made in JAPAN
- DIA6.4×30mm
- Normal blow
Order model number
- Order model numberFG-20-[Rating]
- Order exampleFG-20-4A (An example of ordering with AC250V-4A.)
Basic information
| Size | 6.4mm×30mm |
|---|---|
| Rating | AC250V-4A、 AC250V-5A、 AC250V-6A、 AC250V-7A、AC250V-8A、AC250V-10A |
| Interrupting rating | 10000A |
| Pre-arcing characteristic | Normal blow |
| Main insulator | Ceramic |
| Note | Contains arc extinguishing material. |
Temperature Re-rating Curve
Rerating depicted in this curve is in addition to the industry practice derating of 30% for continuous operation.
