  3. Screwless Terminal Blocks

ML-7000 made in JAPAN

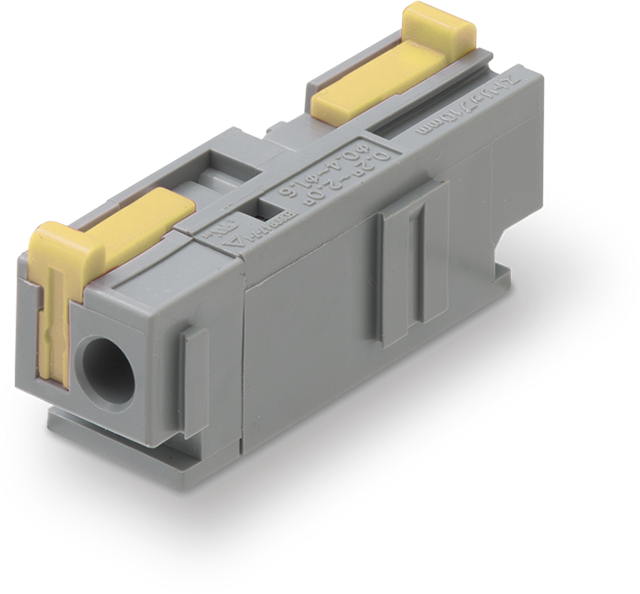

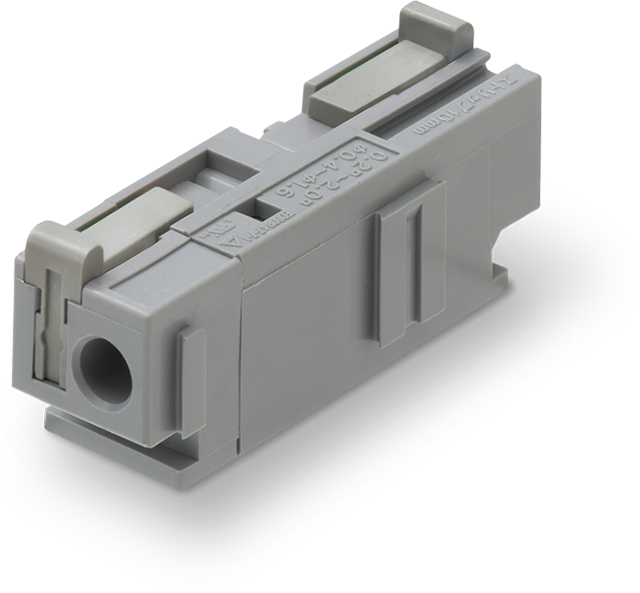

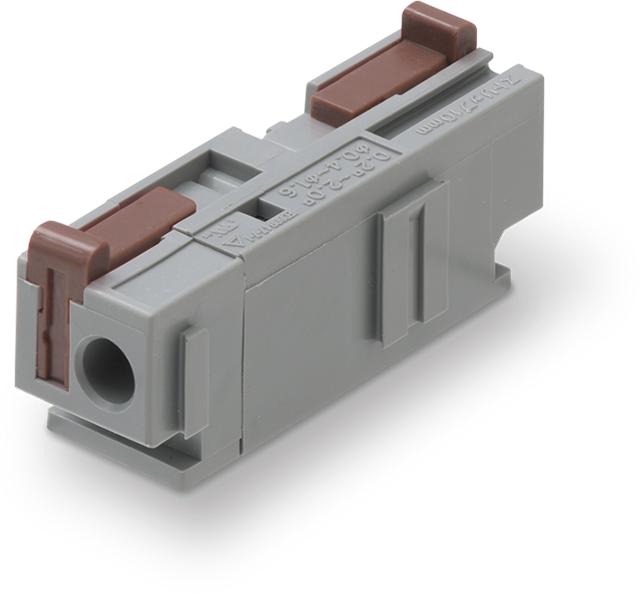

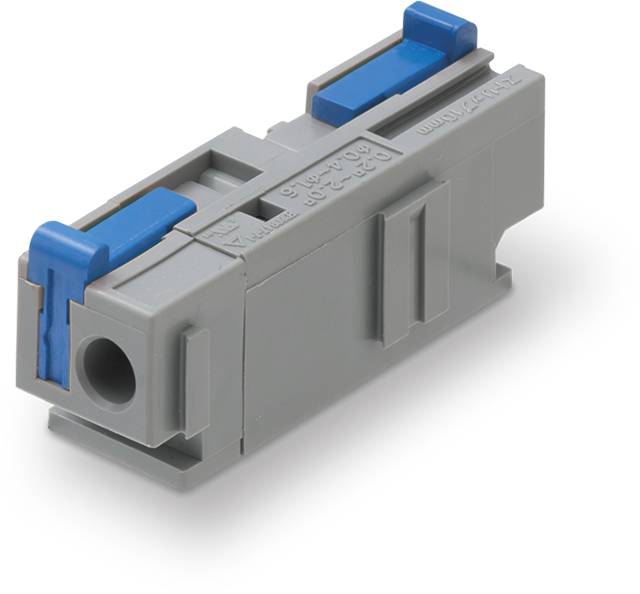

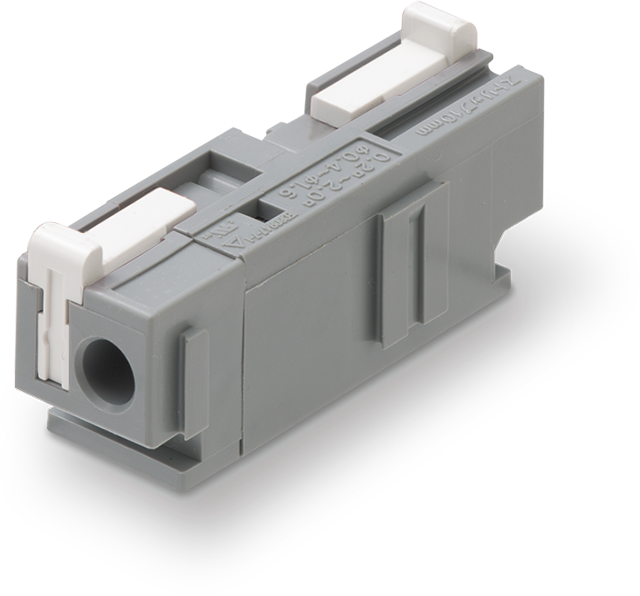

  • ML-7000-B_1_products.png
  • ML-7000-BL_1_products.png
  • ML-7000-BR_1_products.png
  • ML-7000-G_1_products.png
  • ML-7000-GY_1_products.png
  • ML-7000-R_1_products.png
  • ML-7000-W_1_products.png
  • ML-7000-Y_1_products.png
  • ML-7000-B_1_products.png
  • ML-7000-BL_1_products.png
  • ML-7000-BR_1_products.png
  • ML-7000-G_1_products.png
  • ML-7000-GY_1_products.png
  • ML-7000-R_1_products.png
  • ML-7000-W_1_products.png
  • ML-7000-Y_1_products.png
  • Pitch 9.2mm (When use at multi-posision)
  • Compact design
  • Stranded wire and Solid wire
  • Button lock mechanism

Order model number

  • Order model numberML-7000-[Button color]
  • Order exampleML-7000-GY (Example of ordering with gray button color)

circuit diagram

It is a 2-wire connection per pole.

Example of increasing positions

You can increase the pole to your favorite position (P) by using the unevenness on the side.

Button colors

  • GY

  • B

  • W

  • R

  • Y

  • G

  • BL

  • BR

All are standard colors

Basic information

Rating 300V-10A
Insulation resistance DC500V、100MΩ Min
Withstand voltage AC2000V (1minute)
Certificates & Approvals UL (Approved for field wiring)・CSA (C-UL)・TÜV (Compliant with IEC60947-7-1)
Position 1 (Any number of pole joint side by side)
Main insulator Nylon66 (UL94V-0)
Button insulator PPE (UL94V-0)
Rating wire Solid wire : Φ1.2mm (AWG16)、Stranded wire : 1.25mm² (AWG16) Element wireΦ0.18mm Min
Wire range Solid wire : Φ0.4mm~Φ1.6mm (AWG26~AWG14)、Stranded wire : 0.2mm²~2.0mm² (AWG24~AWG14) Element wireΦ0.18mm Min * Please use Solid wire Φ1.2mm or Φ1.6mm when using under Japanese law PSE.
Wire strip length 10mm
Body color GY (Gray)
Button color GY (Gray)、B (Black)、W (White)、R (Red)、Y (Yellow)、G (Green)、BL (Blue)、BR (Brown)
Applicable tool for button Screw driver or others
Note 1.Fluororesin is applied to the buttons to facilitate the operation of the buttons. It may appear that white foreign matter has adhered due to the concentration and retention of this fluororesin in the concave parts of the button operation part, but there is no problem with the quality.
